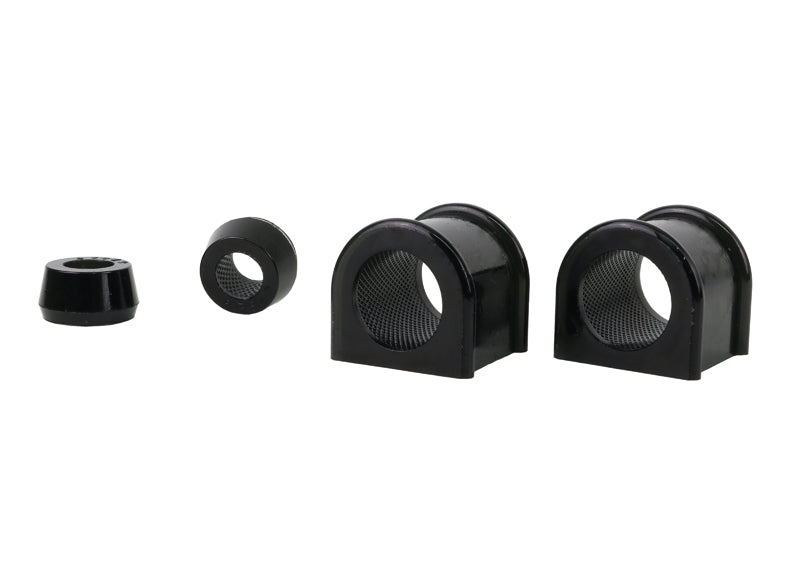

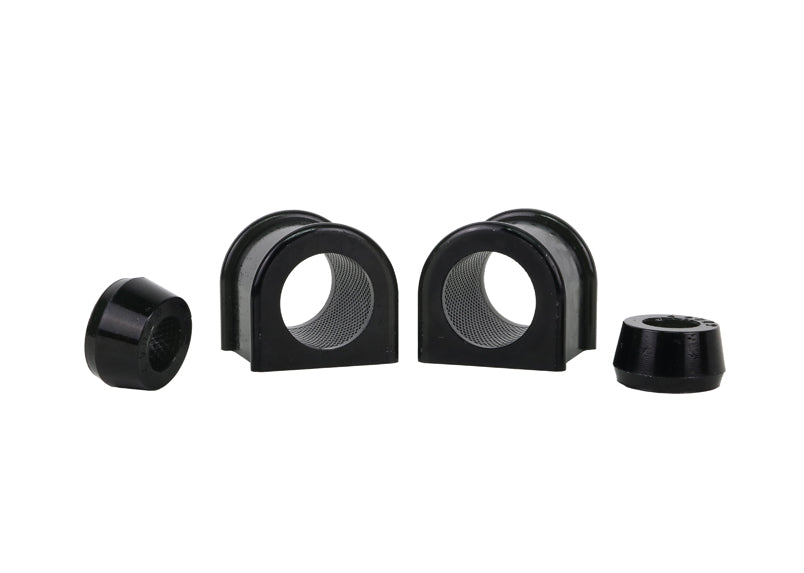

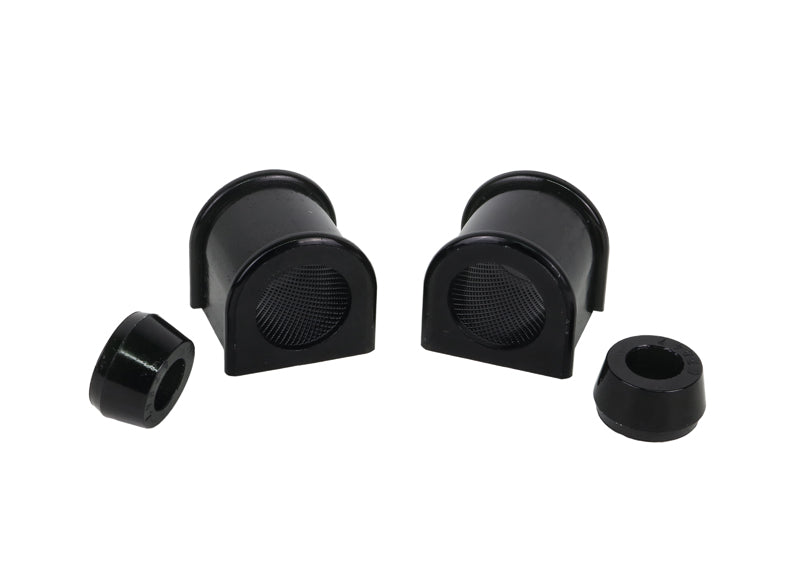

Nolathane - Front Swaybar 28.44mm (1 1/8") Mount & End Link Bushing Set

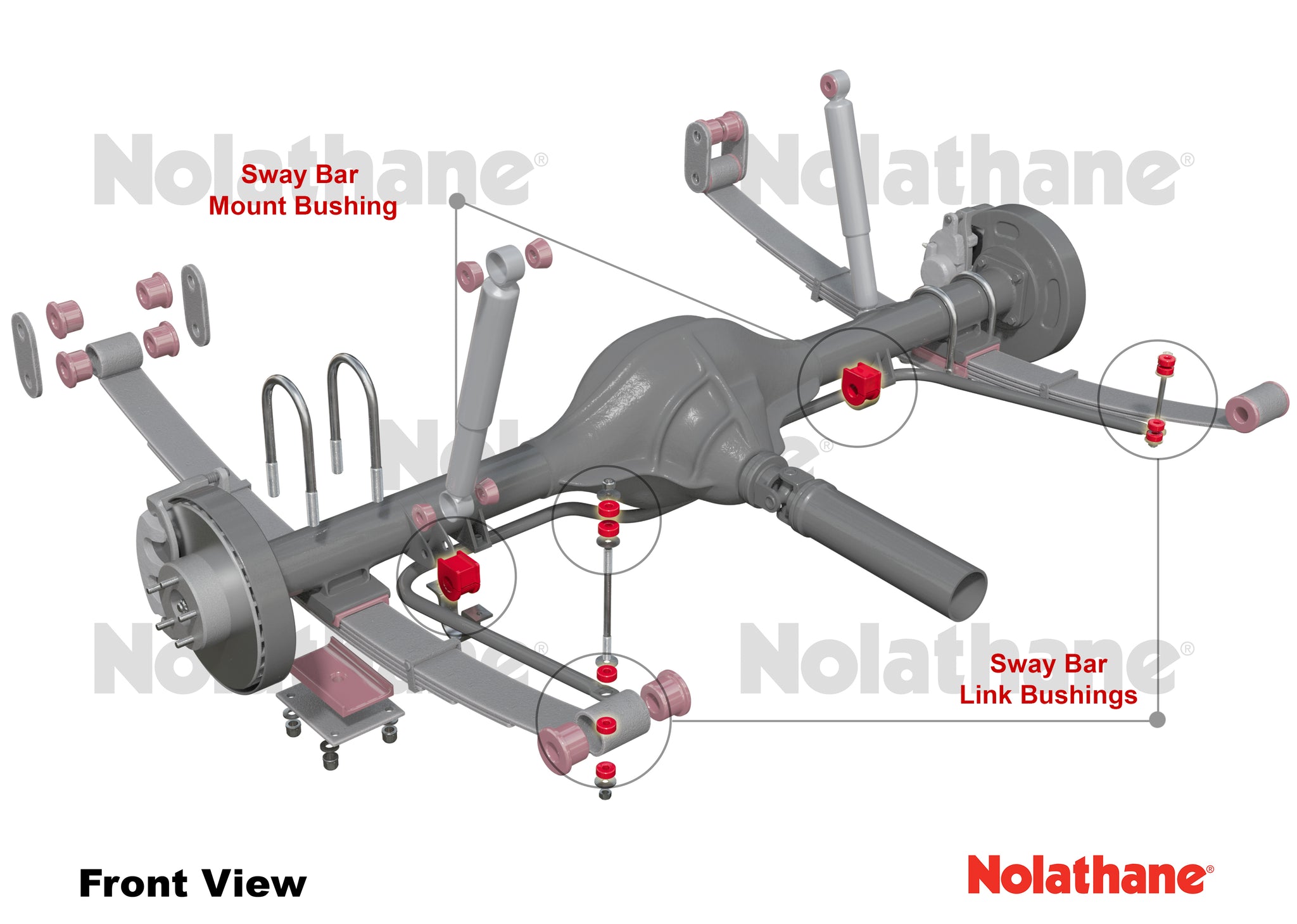

Designed to fit a 28.5mm sway bar. Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install and are backed by a limited lifetime warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks.Nolathane - Front Swaybar 28.44mm (1 1/8") Mount & End Link Bushing Set
Installation Guide: Download Now
Installation Time (hours): 1
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - Front Swaybar 28.44mm (1 1/8") Mount & End Link Bushing Set
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Front Swaybar 28.44mm (1 1/8") Mount & End Link Bushing Set works with the following vehicles.
- 1987 jeep wrangler base
- 1991 jeep wrangler base
- 1994 jeep wrangler base
