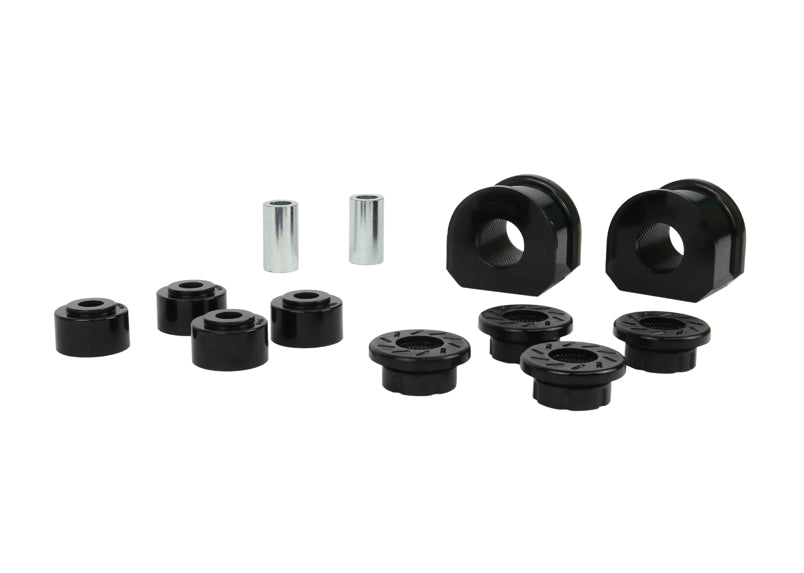

Nolathane - Front Swaybar 25.4mm (1") Mount & End Link Bushing Set
Designed to fit a 23mm sway bar. Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install and are backed by a limited lifetime warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks.Nolathane - Front Swaybar 25.4mm (1") Mount & End Link Bushing Set
Installation Guide: Download Now
Installation Time (hours): 1
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - Front Swaybar 25.4mm (1") Mount & End Link Bushing Set
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Front Swaybar 25.4mm (1") Mount & End Link Bushing Set works with the following vehicles.
- 1970 ford bronco base
- 1970 ford f 100
- 1970 ford f 250
- 1970 ford f 350
- 1973 ford bronco base
- 1973 ford f 100
- 1973 ford f 250
- 1973 ford f 350
- 1974 ford f 250
- 1974 ford f 350
- 1975 ford bronco custom
- 1975 ford f 100
- 1975 ford f 100
- 1975 ford f 150
- 1975 ford f 250
- 1975 ford f 350
- 1976 ford bronco custom
- 1976 ford f 100
- 1976 ford f 150
- 1976 ford f 250
- 1976 ford f 350
- 1977 ford f 100
- 1977 ford f 150
- 1977 ford f 250
- 1977 ford f 350
- 1978 ford bronco custom
- 1978 ford f 250
- 1978 ford f 350
- 1979 ford bronco custom
- 1979 ford f 100
- 1979 ford f 150
- 1979 ford f 350
- 1980 ford bronco custom
- 1980 ford f 100
- 1980 ford f 150
- 1980 ford f 250
- 1980 ford f 350
- 1980 ford f 350
- 1981 ford bronco custom
- 1981 ford f 100
- 1981 ford f 150
- 1981 ford f 250
- 1981 ford f 350
- 1981 ford f 350
- 1982 ford bronco custom
- 1982 ford f 100
- 1982 ford f 150
- 1982 ford f 250
- 1982 ford f 350
- 1982 ford f 350
- 1983 ford bronco custom
- 1983 ford f 100
- 1983 ford f 150
- 1983 ford f 150
- 1983 ford f 250
- 1983 ford f 350
- 1983 ford ranger base
- 1984 ford bronco ii
- 1984 ford f 150
- 1984 ford f 150
- 1984 ford f 250
- 1984 ford f 350
- 1984 ford ranger s
- 1985 ford bronco ii
- 1985 ford f 150
- 1985 ford f 150
- 1985 ford f 250
- 1985 ford f 350
- 1986 ford bronco custom
- 1986 ford bronco ii
- 1986 ford f 150
- 1986 ford f 150
- 1986 ford f 250
- 1986 ford f 350
- 1986 ford f 350
- 1986 ford ranger base
- 1987 ford bronco custom
- 1987 ford bronco ii
- 1987 ford f 150
- 1987 ford f 150
- 1987 ford f 250
- 1987 ford f 350
- 1987 ford f 350
- 1987 ford ranger custom
- 1988 ford bronco custom
- 1988 ford f 150
- 1988 ford f 150
- 1988 ford f 250
- 1988 ford f 350
- 1988 ford f 350
- 1989 ford f 150
- 1989 ford f 150
- 1989 ford f 250
- 1989 ford f 350
- 1989 ford f 350
- 1990 ford bronco ii
- 1990 ford f 150
- 1990 ford f 150
- 1990 ford f 350
- 1991 ford bronco custom
- 1991 ford f 150
- 1991 ford f 150
- 1991 ford f 250
- 1991 ford f 350
- 1991 ford f 350
- 1992 ford bronco custom
- 1992 ford f 150
- 1992 ford f 150
- 1992 ford f 250
- 1992 ford f 250
- 1992 ford f 350
- 1992 ford f 350
- 1993 ford bronco custom
- 1993 ford f 250
- 1993 ford f 250
- 1993 ford f 350
- 1993 ford f 350
- 1994 ford f 150
- 1994 ford f 150
- 1994 ford f 250
- 1994 ford f 250
- 1994 ford f 350
- 1994 ford f 350
- 1995 ford f 150
- 1995 ford f 150
- 1995 ford f 250
- 1995 ford f 250
- 1995 ford f 350
- 1996 ford f 150
- 1996 ford f 250
- 1996 ford f 250
- 1996 ford f 350
- 1996 ford f 350
- 1997 ford f 150
- 1997 ford f 250
- 1997 ford f 250
- 1997 ford f 350
- 1998 ford f 150
- 1998 ford f 150
- 1998 ford f 250
- 1998 ford f 250
