Nolathane - Sway Bar - Link Assembly

Regular price: $83.40
Sale price: $83.40
Regular price
Unit price: per

IN STOCK In Stock! Ships within 24 hours

Free Shipping
Lifetime warranty
24/7 Customer Support available!

Quantity must be 1 or more

SKU: REV018.0016

TYPE: Link Kit

PLACEMENT: Rear

Nolathane - Sway Bar - Link Assembly

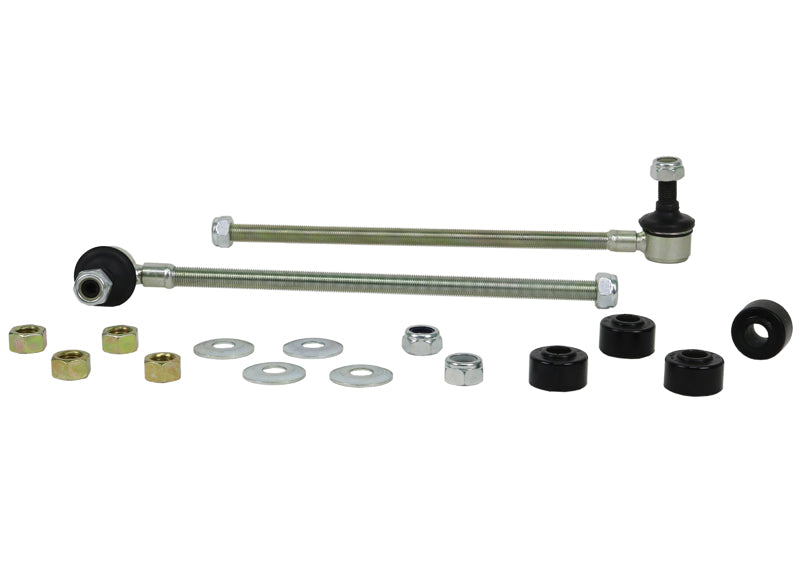

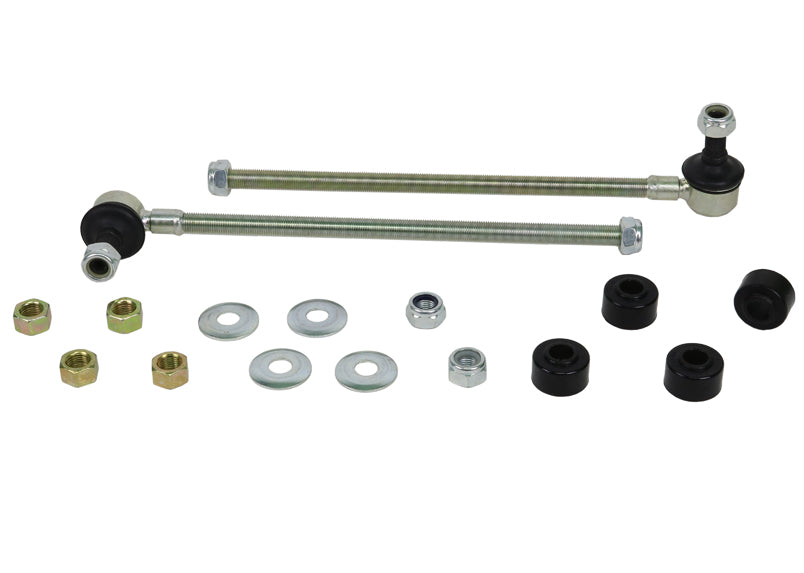

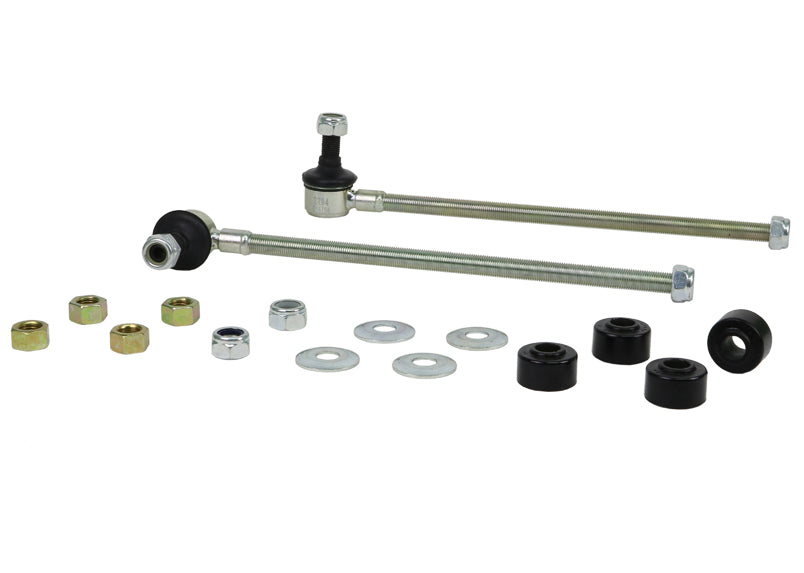

Do you have every sway bar link on the shelf? Well you don't need too, Nolathane have developed a clever cut to length universal sway bar link that has a 10mm ball stud has a working range of 80-320mm c/c. 1 part number covers hundreds of applications.

Nolathane - Sway Bar - Link Assembly

Installation Guide: Download Now

Installation Time (hours): 1

Difficulty: DIY - Do It Yourself

Wheel Alignment Required? No

Nolathane - Sway Bar - Link Assembly

Lubrication Guide

In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing

Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturerâ€™s tolerances.
Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.

Nolathane - Sway Bar - Link Assembly works with the following vehicles.

1996 toyota 4runner base
1997 toyota 4runner base
1998 toyota 4runner base
2000 toyota 4runner base
2007 toyota fj cruiser
2008 toyota fj cruiser
2010 lexus gx460 base
2010 toyota fj cruiser
2011 lexus gx460 base
2011 toyota fj cruiser
2013 toyota fj cruiser
2018 lexus gx460 base
universal parts

Mitsubishi rear differential bushings

Should have purchased these sooner, factory bushings had failed twice since owning vehicle. After Nolathane bushings were installled, never looked back. Now looking to use Nolathane bushings for control arms on another vehicle.

UCA 5th Gen 4Runner

Installed these 2 years ago. Holding up well in the Midwest winters and light off roadiing. Great for negative offset wheels.

Don't buy for Steering Rack

With regards to the 100 series Land Cruiser, the stiffer Nolothane bushings created issues with the VSC. It seems that the VSC was overly sensitive once the new bushings were put on causing the vehicle skid control to activate during mild turning causing the ABS system to activate needlessly. Prior to installing the bushings this problem did not exist and I am certain it is because the rack needs some amount of movement as it did with the rubber. If you are going to replace steering rack bushings I 'd suggest going with OEM equipment.

Excellent quality.

Excellent quality, perfect fit, huge improvement over stock rubber bushings and still flexable enough to not make you regret the install everytime you arent drivi g on perfectly smooth roads. What more could you ask for?

Superb parts

Quality replacement that really restored my suspension to like new
