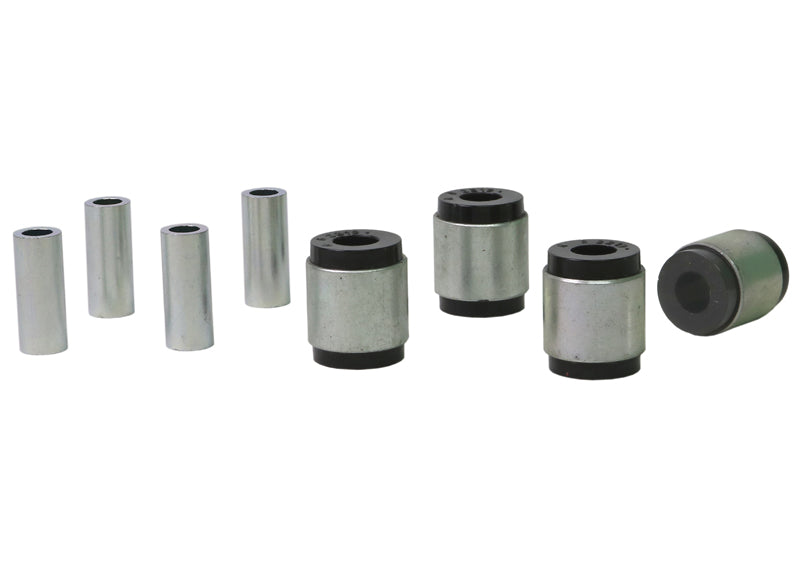

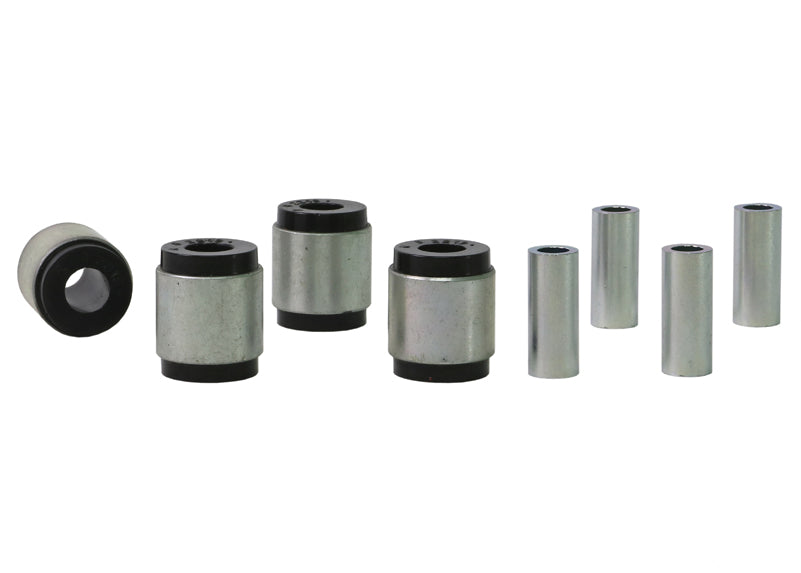

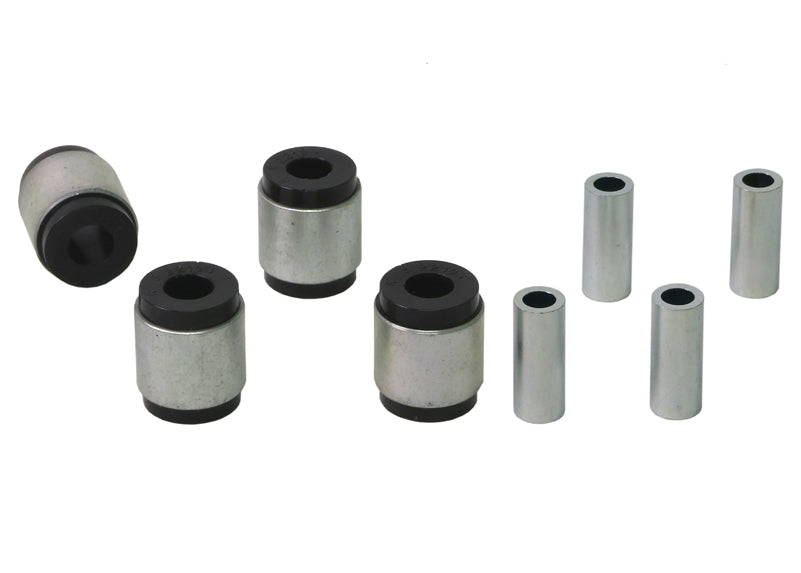

Nolathane - Control Arm - Upper Bushing - 34mm OD

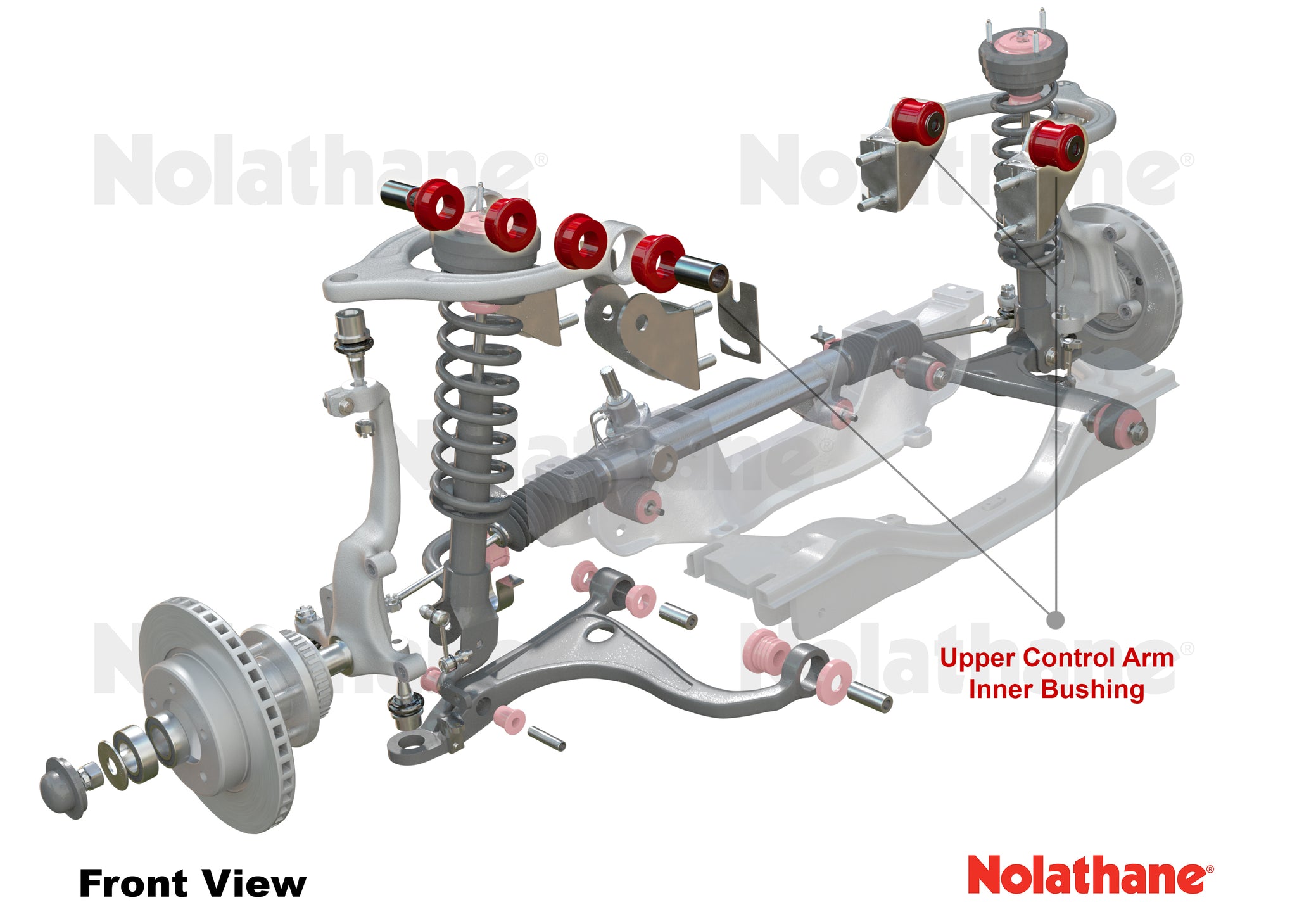

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.Nolathane - Control Arm - Upper Bushing - 34mm OD
Installation Guide: Download Now
Installation Time (hours): 2.5
Difficulty: Trade Specialist
Wheel Alignment Required? Yes
Nolathane - Control Arm - Upper Bushing - 34mm OD
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Control Arm - Upper Bushing - 34mm OD works with the following vehicles.
- 1992 honda civic cx
- 1992 honda civic dx
- 1992 honda civic ex
- 1993 honda civic cx
- 1993 honda civic del
- 1993 honda civic dx
- 1993 honda civic ex
- 1994 acura integra gs
- 1994 honda civic del
- 1996 honda civic del
- 1996 honda civic del
- 1997 acura integra gs
- 1999 acura integra type
