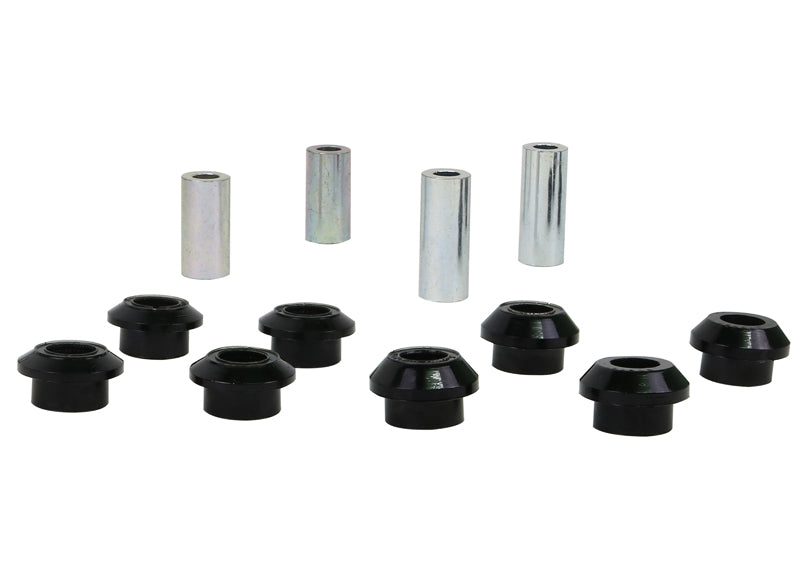

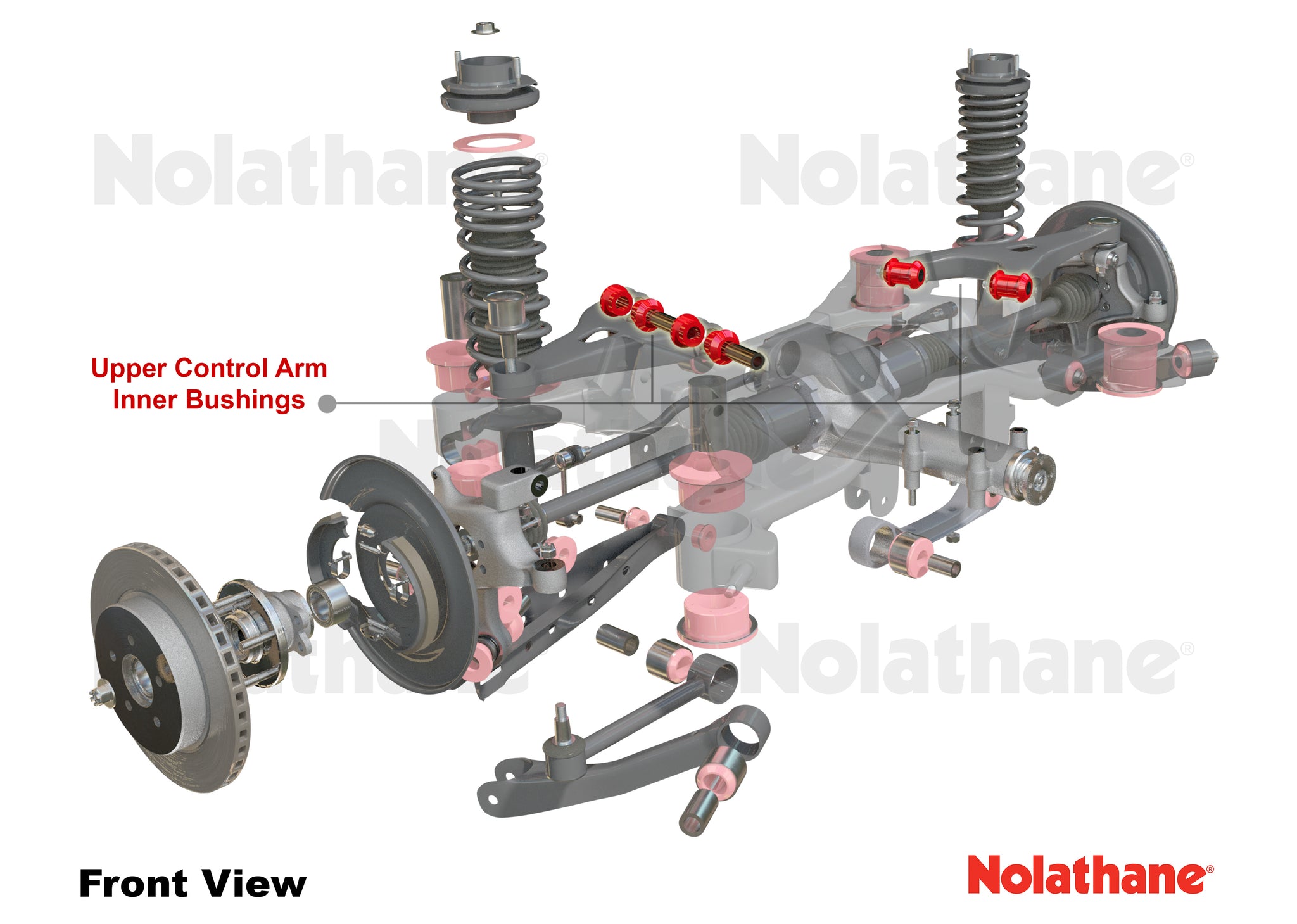

Nolathane - Control Arm - Upper Inner Bushing
Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your control arm bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.Nolathane - Control Arm - Upper Inner Bushing
Installation Guide: Download Now
Installation Time (hours): 3
Difficulty: DIY - With Specialist Tools
Wheel Alignment Required? Yes
Nolathane - Control Arm - Upper Inner Bushing
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Control Arm - Upper Inner Bushing works with the following vehicles.
- 2004 subaru legacy gt
- 2005 subaru legacy gt
- 2006 subaru legacy 2
- 2008 subaru forester 2
- 2008 subaru impreza 2
- 2008 subaru impreza 2
- 2008 subaru legacy 2
- 2009 subaru forester x
- 2009 subaru forester x
- 2011 subaru impreza 2
- 2011 subaru impreza sport
- 2012 subaru forester x
- 2012 subaru forester x
- 2012 subaru impreza base
- 2012 subaru impreza limited
- 2013 scion fr s
- 2013 subaru brz base
- 2013 subaru impreza base
- 2013 subaru impreza i
- 2013 subaru xv crosstrek
- 2014 scion fr s
- 2014 subaru forester 2
- 2014 subaru impreza base
- 2014 subaru impreza i
- 2014 subaru xv crosstrek
- 2015 scion fr s
- 2015 subaru brz aozora
- 2015 subaru forester 2
- 2015 subaru impreza base
- 2015 subaru impreza i
- 2015 subaru wrx base
- 2015 subaru wrx sti
- 2015 subaru xv crosstrek
- 2015 subaru xv crosstrek
- 2017 subaru wrx base
- 2018 subaru brz base
- 2018 subaru forester 2
- 2018 subaru wrx cvt
