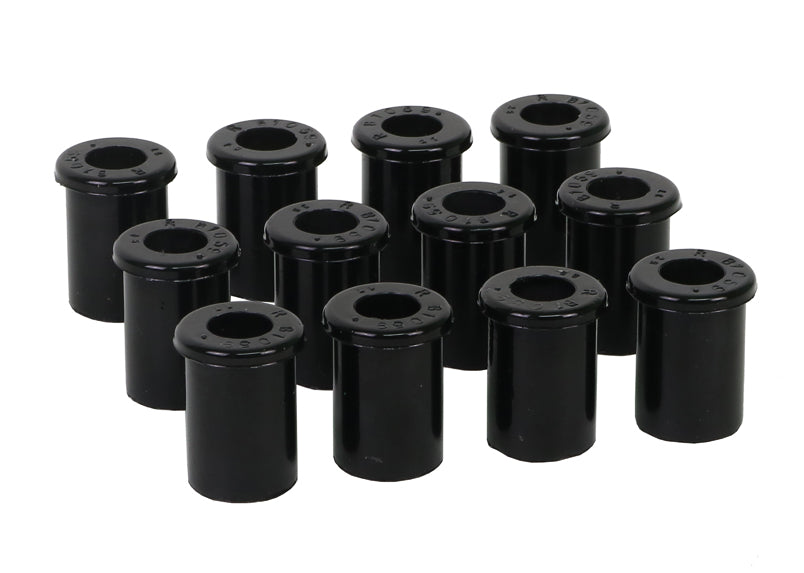

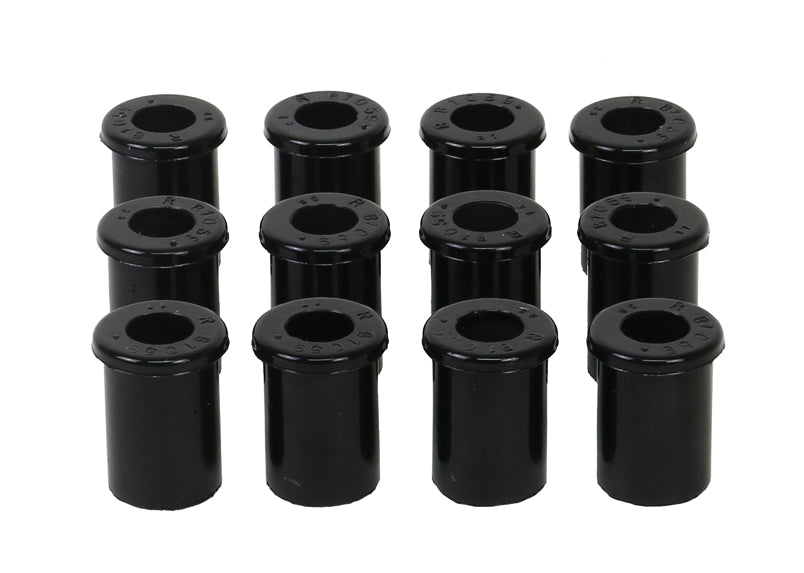

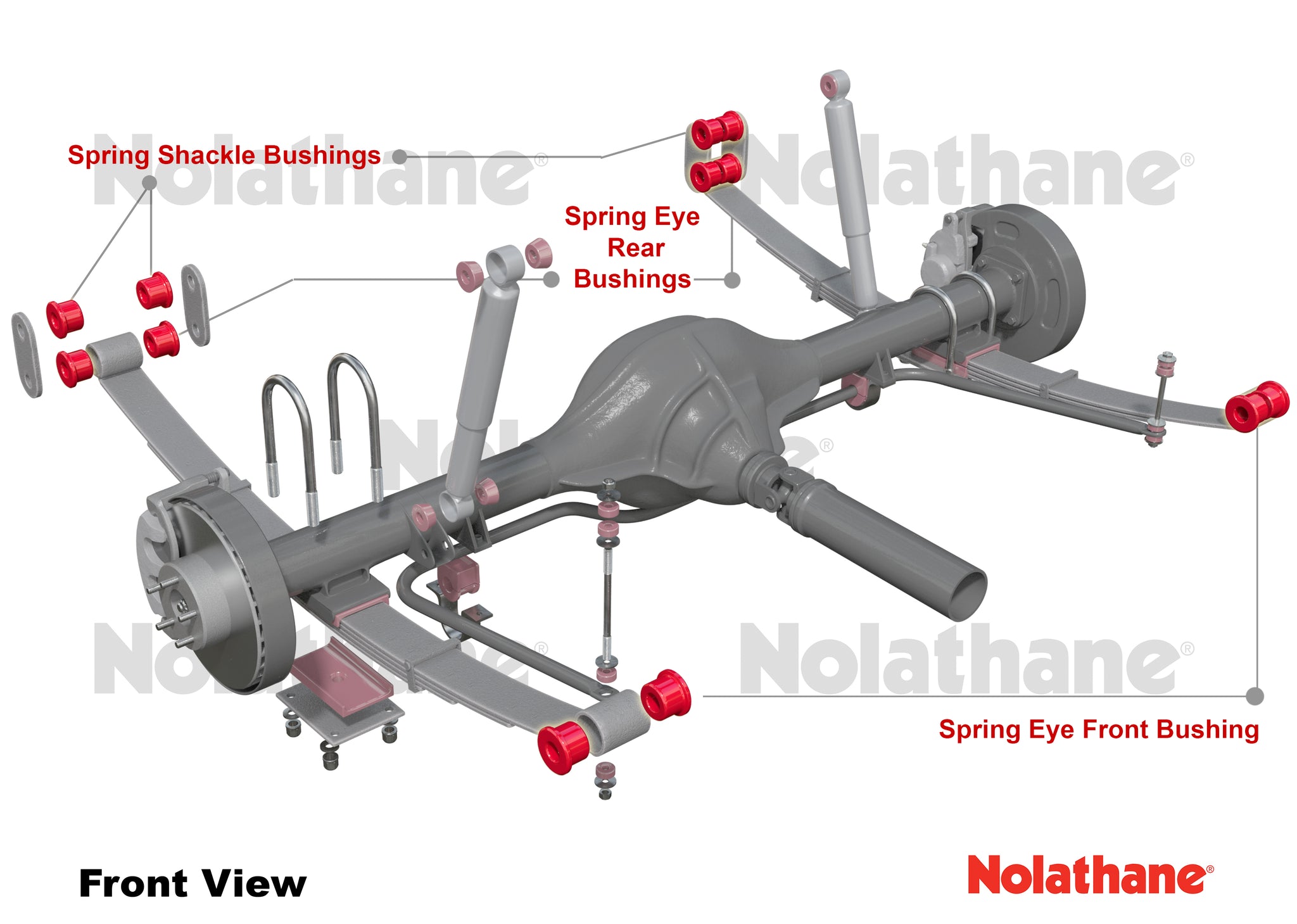

Nolathane - Leaf Spring and Shackle Bushing Kit - Front, Rear Eye and Shackle
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.Nolathane - Leaf Spring and Shackle Bushing Kit - Front, Rear Eye and Shackle
Installation Guide: Download Now
Installation Time (hours): 3
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - Leaf Spring and Shackle Bushing Kit - Front, Rear Eye and Shackle
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Leaf Spring and Shackle Bushing Kit - Front, Rear Eye and Shackle works with the following vehicles.
- 1960 toyota land cruiser
- 1963 toyota land cruiser
- 1964 toyota land cruiser
- 1969 toyota land cruiser
- 1975 toyota land cruiser
- 1979 toyota land cruiser
- 1980 toyota land cruiser
- 1981 toyota land cruiser
- 1984 toyota land cruiser
