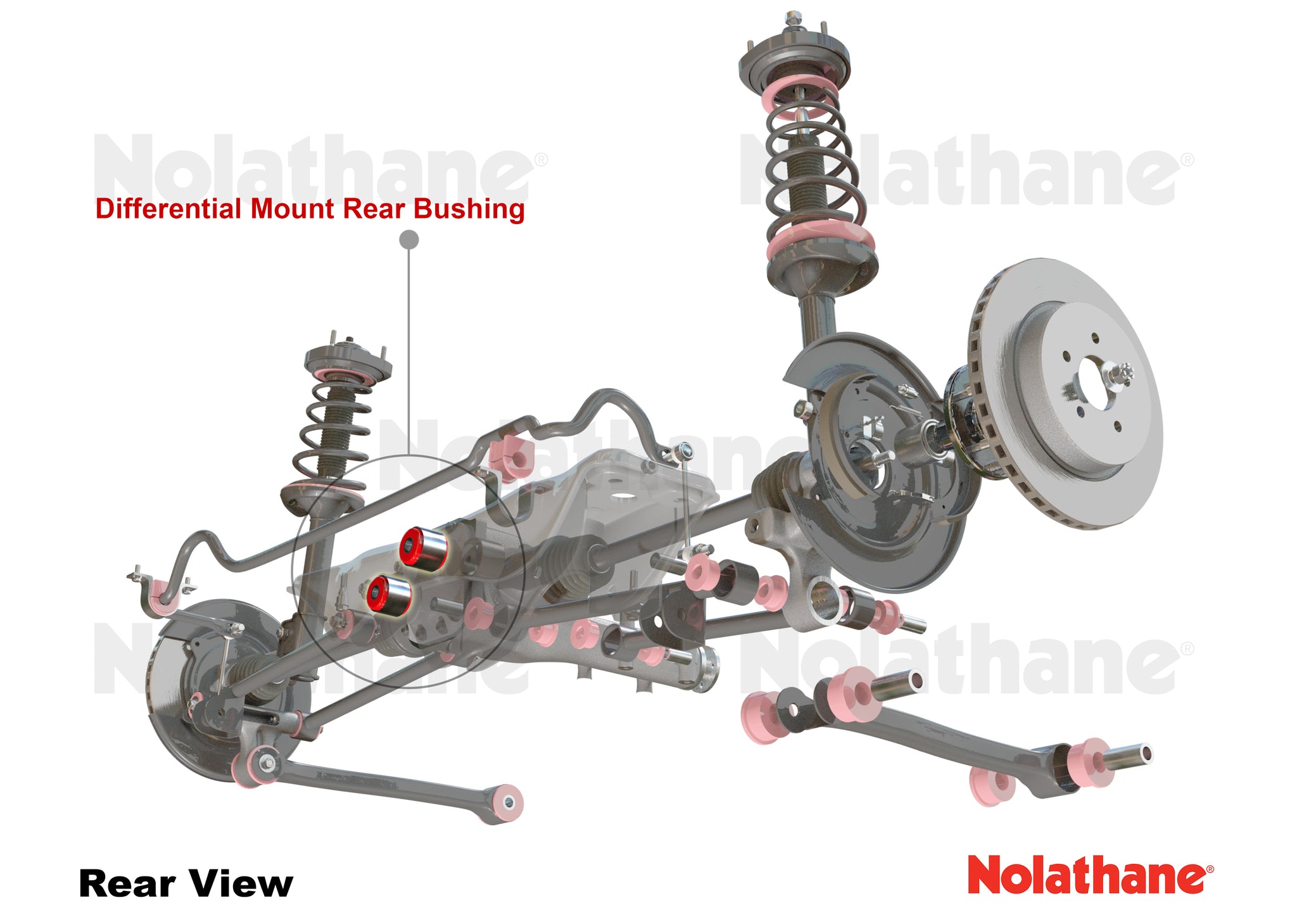

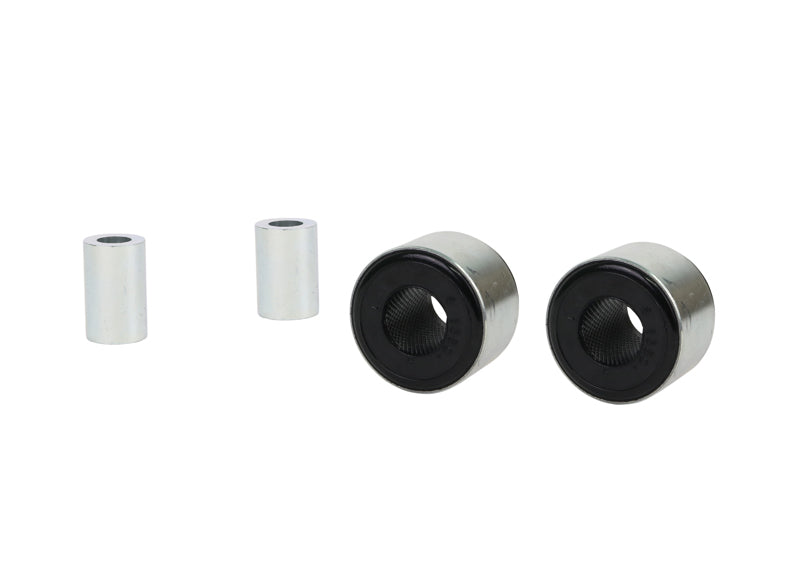

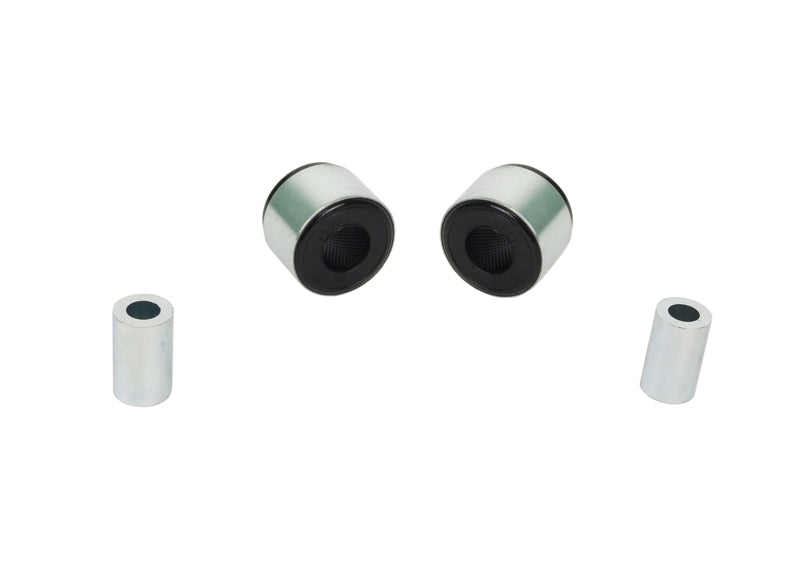

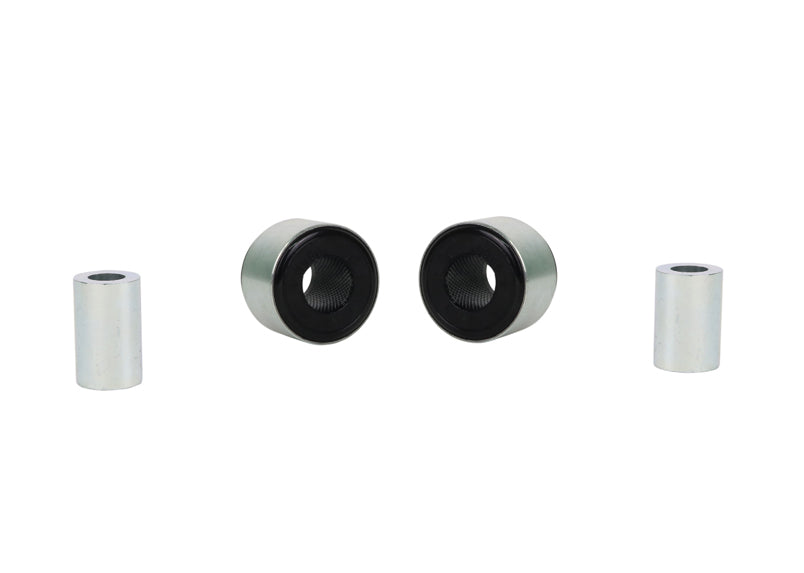

Nolathane - Differential - Mount In Cradle Bushing - 41mm Tube Length
Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.Nolathane - Differential - Mount In Cradle Bushing - 41mm Tube Length
Installation Guide: Download Now
Installation Time (hours): 4
Difficulty: Trade Specialist
Wheel Alignment Required? No
Nolathane - Differential - Mount In Cradle Bushing - 41mm Tube Length
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Differential - Mount In Cradle Bushing - 41mm Tube Length works with the following vehicles.
- 1993 subaru impreza 4x4
- 1995 subaru legacy base
- 1995 subaru legacy brighton
- 1996 subaru impreza brighton
- 1996 subaru legacy brighton
- 1996 subaru legacy gt
- 1997 subaru legacy brighton
- 1997 subaru legacy gt
- 1998 subaru impreza l
- 2000 subaru impreza l
- 2002 subaru impreza outback
- 2003 subaru impreza outback
- 2004 subaru impreza outback
- 2005 saab 9 2x
- 2005 subaru impreza outback
- 2007 subaru impreza 2
