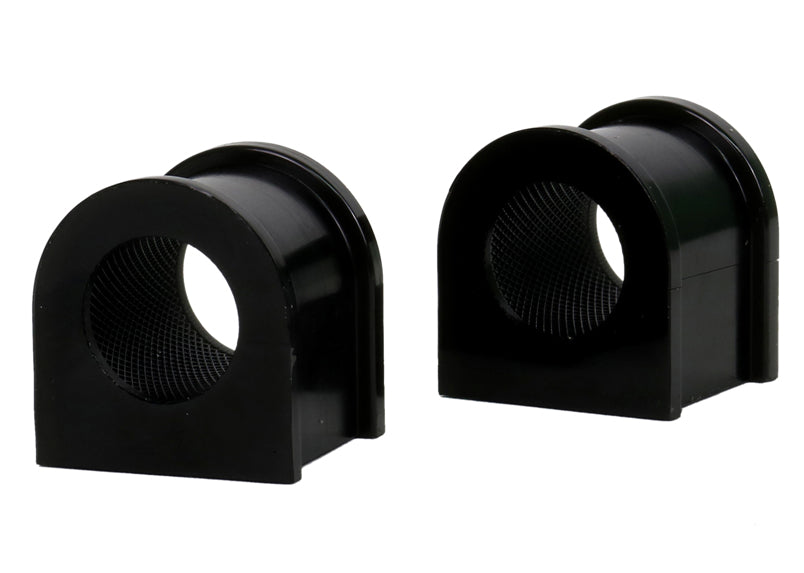

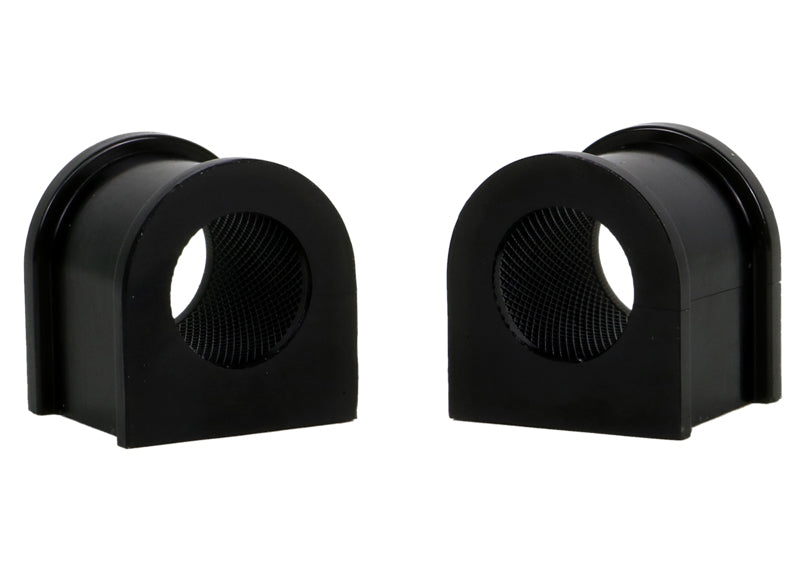

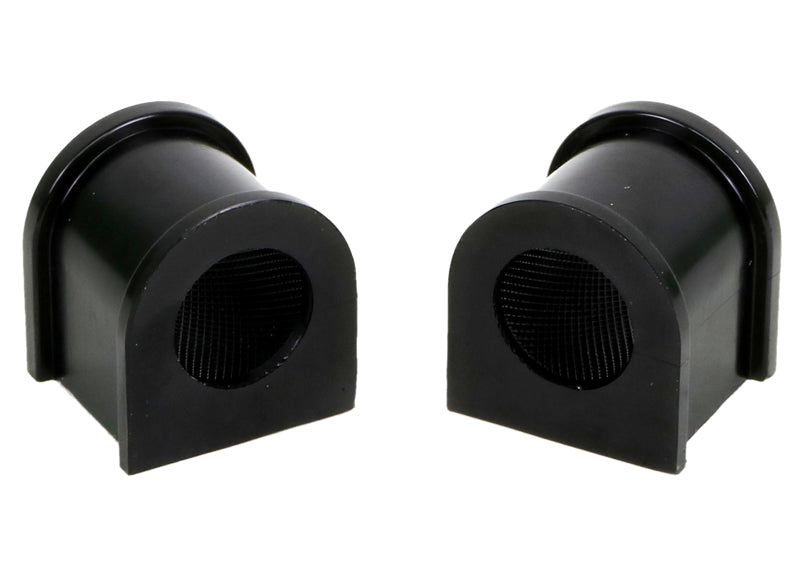

Nolathane - 30mm Sway Bar Mount Bushing Set
One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.Nolathane - 30mm Sway Bar Mount Bushing Set
Installation Guide: Download Now
Installation Time (hours): 1
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - 30mm Sway Bar Mount Bushing Set
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - 30mm Sway Bar Mount Bushing Set works with the following vehicles.
- 1979 ford mustang base
- 1979 mercury capri base
- 1980 ford mustang base
- 1980 ford thunderbird base
- 1981 mercury capri base
- 1981 mercury cougar base
- 1981 mercury cougar xr
- 1982 ford thunderbird base
- 1983 ford mustang base
- 1983 ford thunderbird base
- 1983 mercury cougar base
- 1984 ford mustang base
- 1984 ford mustang svo
- 1984 ford thunderbird base
- 1984 mercury capri gs
- 1984 mercury capri rs
- 1984 mercury cougar base
- 1985 ford mustang gt
- 1985 ford mustang svo
- 1985 ford thunderbird base
- 1985 mercury capri gs
- 1985 mercury cougar base
- 1986 ford mustang gt
- 1986 ford mustang svo
- 1986 mercury capri 5
- 1986 mercury capri gs
- 1987 ford thunderbird base
- 1987 mercury cougar ls
- 1988 ford thunderbird base
- 1994 ford mustang base
- 1994 ford mustang gt
- 1995 ford mustang svt
- 1996 ford mustang base
- 1999 ford mustang base
- 1999 ford mustang equipado
