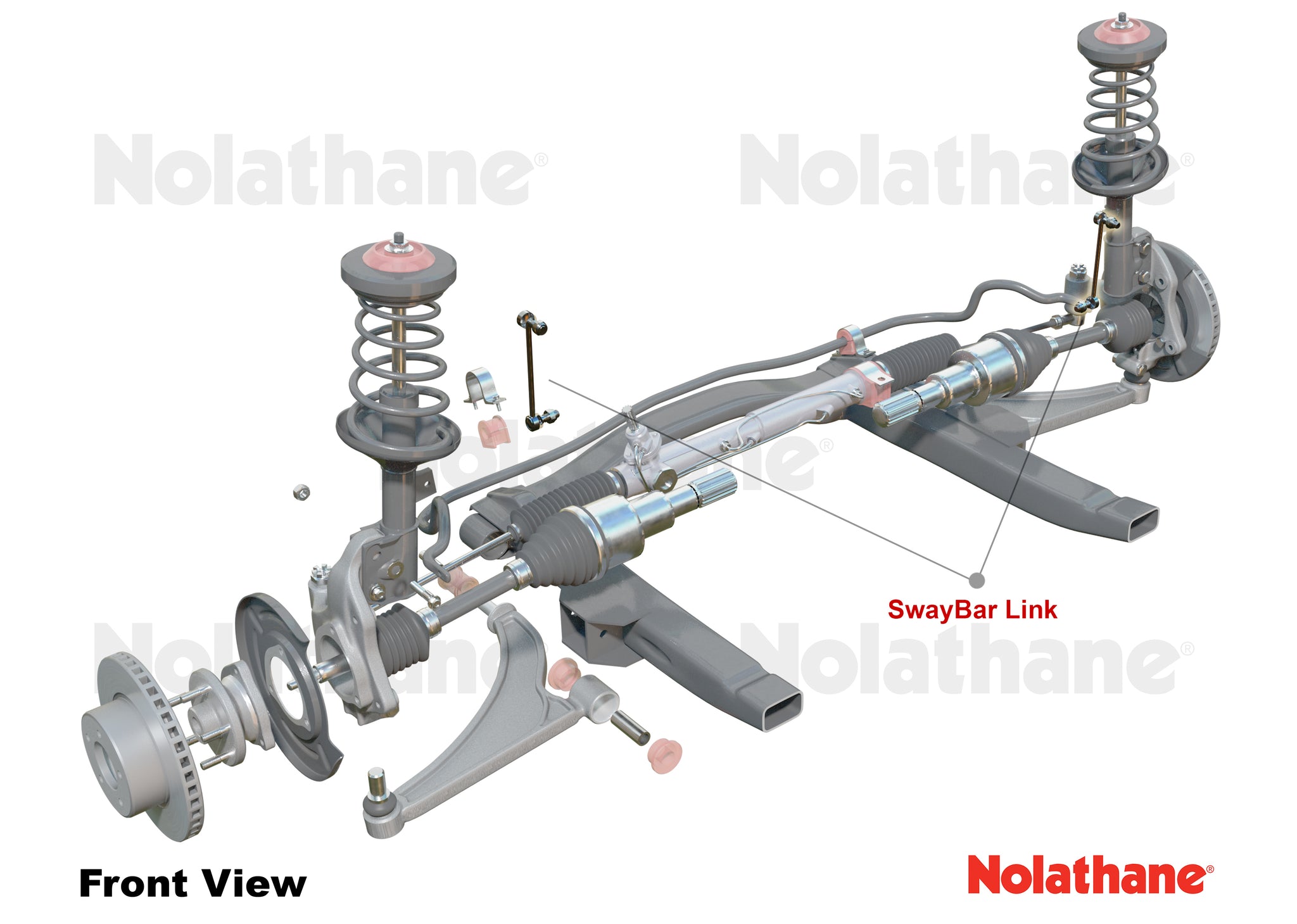

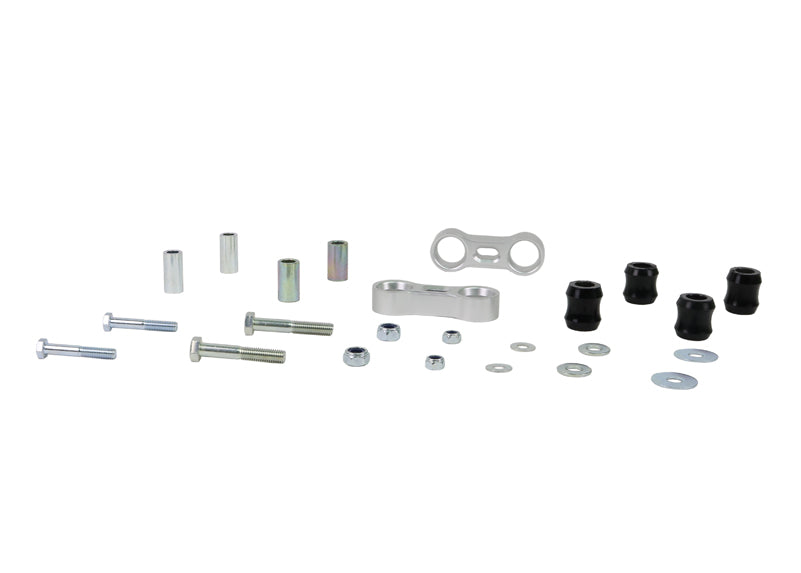

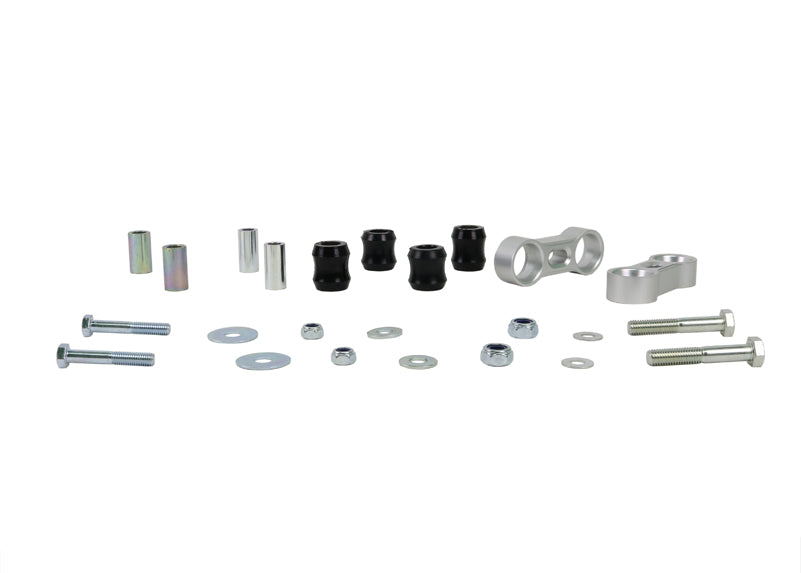

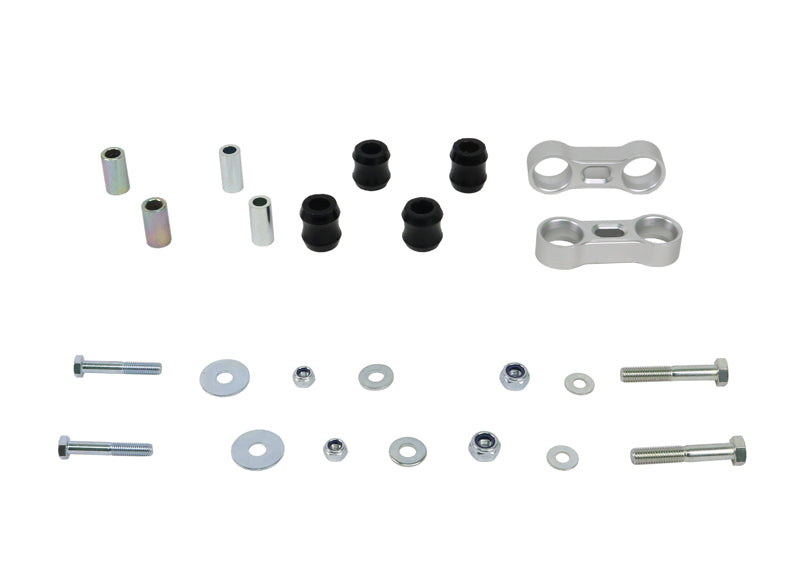

Nolathane - Front Swaybar End Link Set - Wagon Models
Nolathane's 'hourglass' bushing design and combined heavy duty extruded aluminium links to develop the 'perfect solution' - replacing the original glass composite sway bar links which distort under severe suspension loading ( effectively reducing bar rate and immediate handling response) and fitment of heavy duty aftermarket sway bars.Nolathane - Front Swaybar End Link Set - Wagon Models
Installation Guide: Download Now
Installation Time (hours): 1
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - Front Swaybar End Link Set - Wagon Models
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Front Swaybar End Link Set - Wagon Models works with the following vehicles.
- 1993 subaru impreza 4x4
- 1993 subaru legacy 4x4
- 1994 subaru legacy alpine
- 1995 subaru legacy base
- 1995 subaru legacy brighton
- 1996 subaru legacy brighton
- 1996 subaru legacy gt
- 1997 subaru legacy brighton
- 1997 subaru legacy gt
- 1998 subaru forester base
- 1998 subaru impreza l
- 2000 subaru impreza l
- 2000 subaru legacy gt
- 2000 subaru outback base
- 2001 subaru legacy gt
- 2001 subaru outback base
- 2002 subaru forester base
- 2002 subaru impreza outback
- 2003 subaru impreza outback
- 2003 subaru legacy gt
- 2003 subaru outback base
- 2004 subaru impreza outback
- 2004 subaru outback base
- 2005 saab 9 2x
- 2005 subaru impreza outback
- 2007 subaru impreza 2
