One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.

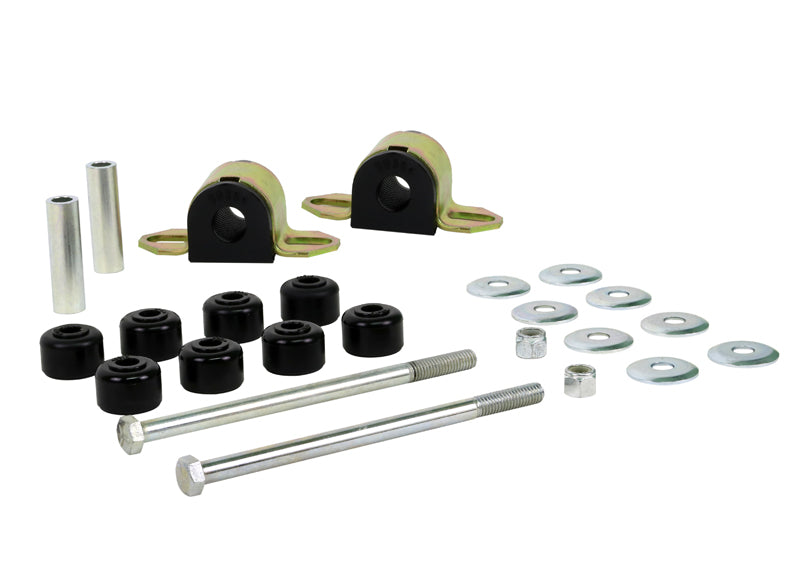

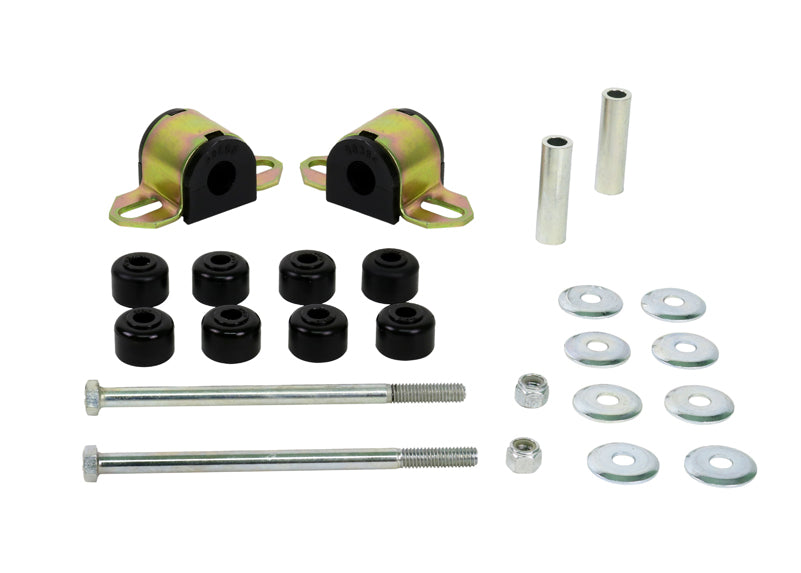

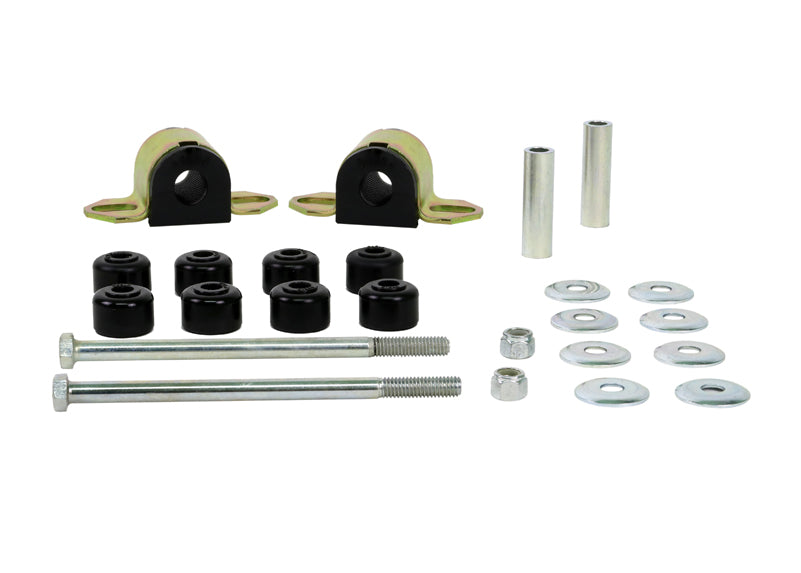

Nolathane - Rear Sway Bar And End Link Bushings - 19mm (0.74 inch)
One of the most common suspension service items as they are easily inspected and simple to replace. Nolathane sway bar mounts feature the latest in material formulation technology with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
REVIEWS
Nolathane - Rear Sway Bar And End Link Bushings - 19mm (0.74 inch)
We value our customers feedback greatly. Let us know what you think of your Whiteline products by leaving a review below, or by reaching out to our Customer Support team. We look forward to hearing from you!
INSTALLATION book
Nolathane - Rear Sway Bar And End Link Bushings - 19mm (0.74 inch)
Nolathane - Rear Sway Bar And End Link Bushings - 19mm (0.74 inch)
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
FITMENT
Nolathane - Rear Sway Bar And End Link Bushings - 19mm (0.74 inch) works with the following vehicles.
1993 chevrolet camaro base
1993 chevrolet camaro z28
1993 pontiac firebird base
1998 chevrolet camaro base
1998 chevrolet camaro z28
1998 pontiac firebird base
1998 pontiac firebird formula
2000 chevrolet camaro base
2000 chevrolet camaro z28
