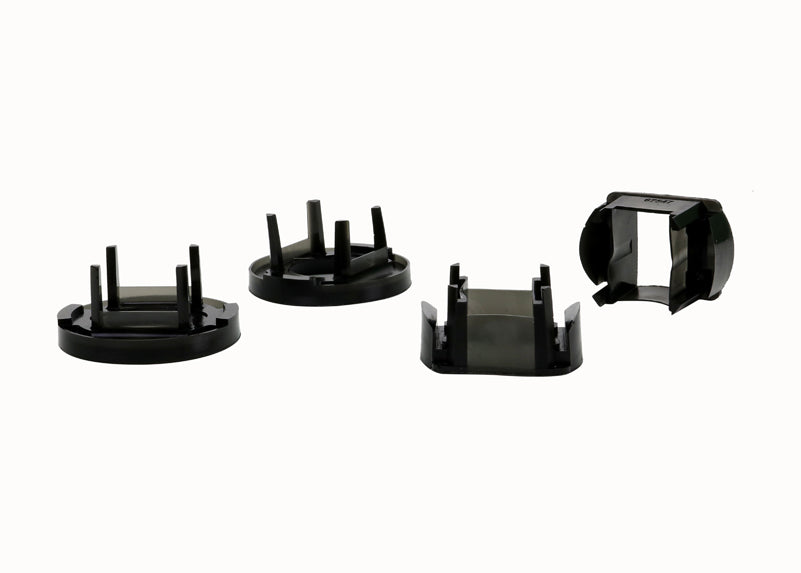

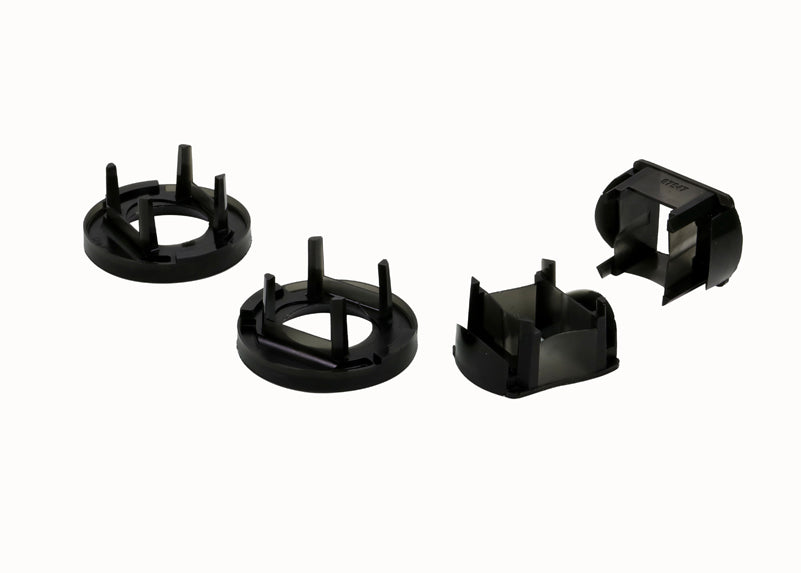

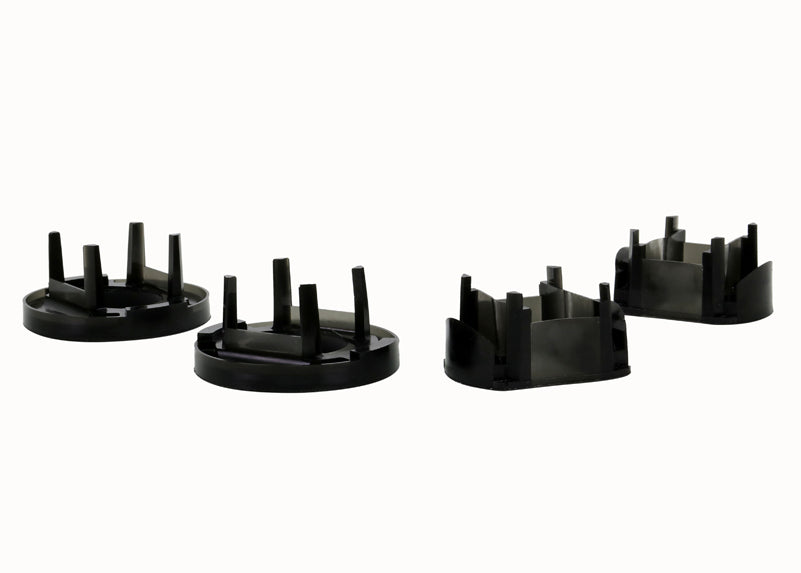

The Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
The Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
REVIEWS
Rear Subframe - mount rear bushing
We value our customers feedback greatly. Let us know what you think of your Whiteline products by leaving a review below, or by reaching out to our Customer Support team. We look forward to hearing from you!
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
FITMENT
Rear Subframe - mount rear bushing works with the following vehicles.
2006 bmw 325i base
2006 bmw 325xi base
2007 bmw 328i base
2007 bmw 328xi base
2007 bmw 335xi base
2008 bmw 128i base
2008 bmw 328i base
2008 bmw 328xi base
2008 bmw 335xi base
2009 bmw 335d base
2010 bmw 328i base
2010 bmw 328i xdrive
2010 bmw 335d base
2010 bmw 335i xdrive
2011 bmw 328i base
2011 bmw 328i xdrive
2011 bmw 335i xdrive
2011 bmw 335is base
2012 bmw 128i base
2012 bmw 328i base
2012 bmw 328i xdrive
2012 bmw 335i xdrive
2012 bmw 335is base
2013 bmw 135is base
2013 bmw 328i base
2013 bmw 328i xdrive
2013 bmw 335i base
2013 bmw x1 sdrive28i
2014 bmw 228i base
2014 bmw 328d base
2014 bmw 335i base
2015 bmw 228i xdrive
2015 bmw 320i base
2015 bmw 328d base
2016 bmw 330e base
2016 bmw 340i base
2016 bmw 340i xdrive
2017 bmw 330i gt
