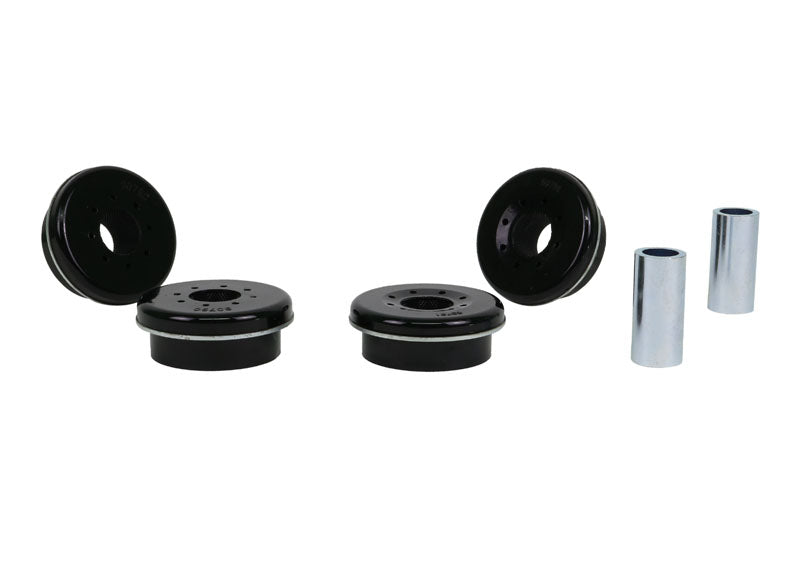

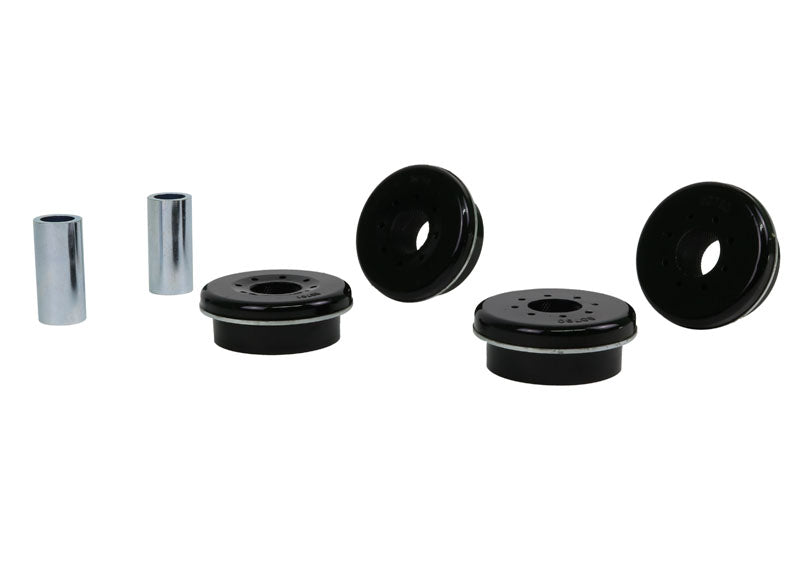

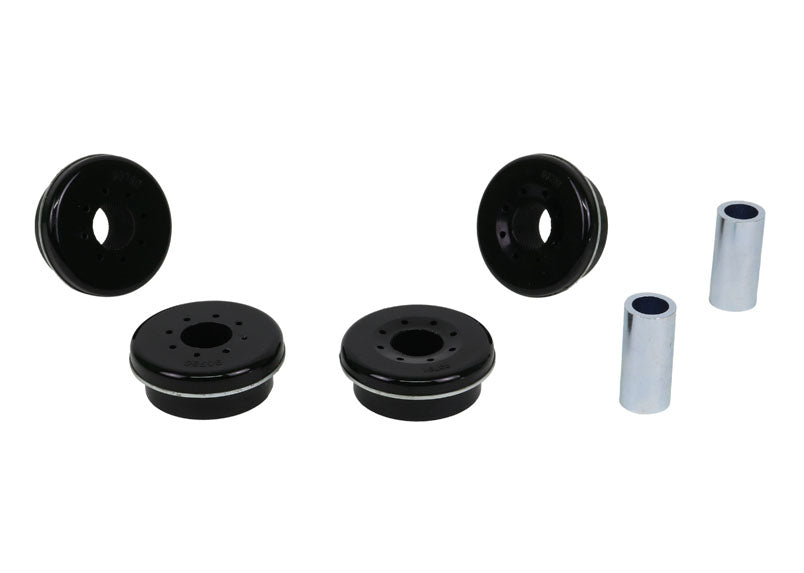

The Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
The Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
REVIEWS
Nolathane - Rear Subframe Rear Bushing
We value our customers feedback greatly. Let us know what you think of your Whiteline products by leaving a review below, or by reaching out to our Customer Support team. We look forward to hearing from you!
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
FITMENT
Nolathane - Rear Subframe Rear Bushing works with the following vehicles.
1998 bmw 318i base
1998 bmw 318ti base
1998 bmw 323i base
1998 bmw 328i base
1999 bmw 318ti base
1999 bmw 323i base
1999 bmw 323is base
1999 bmw 328i base
1999 bmw 328is base
2000 bmw 323ci base
2000 bmw 323i base
2001 bmw 325ci base
2001 bmw 325xi base
2003 bmw z4 2
2004 bmw x3 2
2004 bmw z4 2
2005 bmw 325ci base
2005 bmw 325xi base
2006 bmw 325ci base
2006 bmw 325i base
2006 bmw 325xi base
2006 bmw z4 coupe
2006 bmw z4 m
2007 bmw 328i base
2007 bmw 328xi base
2007 bmw 335i base
2007 bmw 335xi base
2009 bmw x3 xdrive30i
2009 bmw z4 sdrive30i
2010 bmw x3 xdrive30i
2010 bmw z4 sdrive30i
2011 bmw x3 xdrive28i
2012 bmw z4 sdrive35i
2016 bmw z4 sdrive35i
