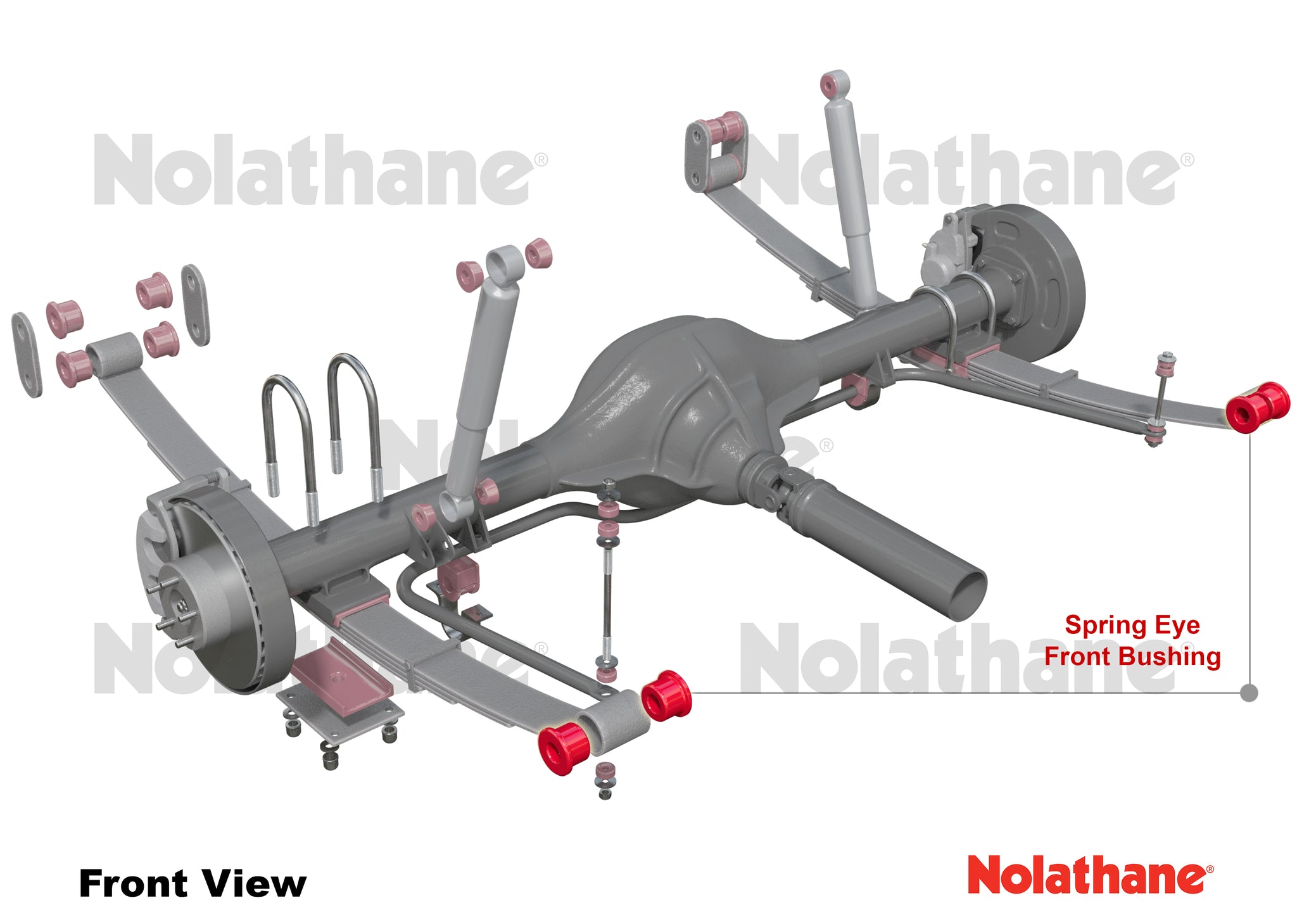

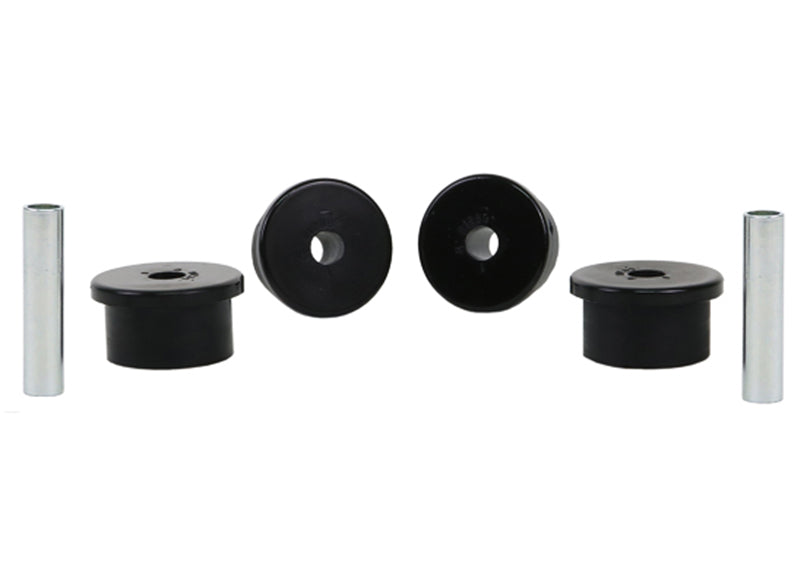

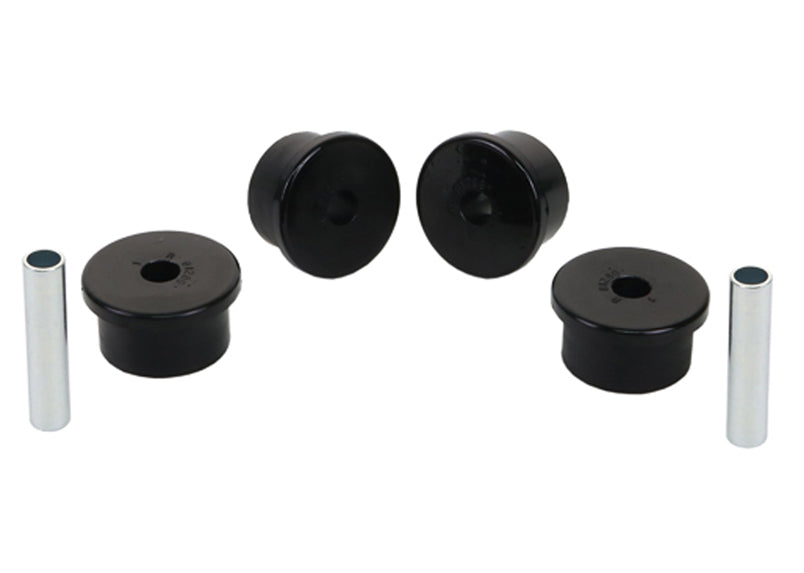

Nolathane - Spring - Eye Front Bushing - 1.6L & 2.0L Models
A critical service item for any leaf sprung vehicle. High kilometers and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD?��s, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.Nolathane - Spring - Eye Front Bushing - 1.6L & 2.0L Models
Installation Guide: Download Now
Installation Time (hours): 1
Difficulty: DIY - Do It Yourself
Wheel Alignment Required? No
Nolathane - Spring - Eye Front Bushing - 1.6L & 2.0L Models
Lubrication Guide
In the majority of applications the Nolathane bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Nolathane products take the following precautions when installing
- Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.
- Please use these hints along with any instructions provided when fitting Nolathane products. Vehicle manufacturers manual should be used to ensure Nolathane warranty compliance.
- Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.
- Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.
- NOTE: The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.
Nolathane - Spring - Eye Front Bushing - 1.6L & 2.0L Models works with the following vehicles.
- 1969 mercury capri base
- 1970 mercury capri base
- 1971 mercury capri base
